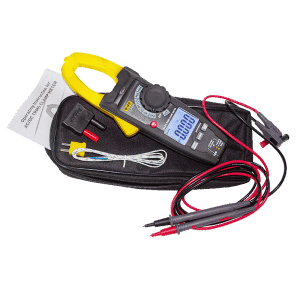

Di-LOG DL6414 TRMS 1000A AC/DC Clamp Meter
£169.00
1000 Amp AC/DC True RMS Digital Clamp Meter
The Di-LOG DL6414 is a high-performance True RMS digital clamp meter designed for precise measurements in electrical engineering applications. Its robust construction and advanced features including a 1000V DC measurement, Low Impedance and Inrush Current make it suitable for a wide range of tasks, including domestic and medium commercial solar installations.
Key Features:
- True RMS Measurement:Â Ensures accurate readings for complex waveforms.
- Accurate AC/DC Current Measurement:Â Measures up to 1000A with exceptional accuracy, ensuring reliable results.
- Versatile Voltage Measurement:Â Handles both AC and DC voltages up to 1000V, making it adaptable to various applications including domestic and commercial Solar Installations.
- Compact and Ergonomic Design:Â The streamlined body and 35mm jaw opening allow for easy handling and access to confined spaces.
- VFD (Variable Frequency Drive) Mode:Â Optimized for measuring variable frequency drives.
- Inrush Current Measurement:Â Captures transient currents for troubleshooting.
- Low Impedance (LoZ):Â Provides accurate measurements in low-impedance circuits.
- Safety and Protection:Â Rated CAT IV 600V for safe operation and complete protection across all measurement ranges.
- Integrated LED Torch:Â Improves visibility in low-light conditions.
RE-CAL is a part of the Di-LOG group, for more information click the link to view our group divisions.
Description
Specifications
Measurement Range Basic Accuracy AC Current true RMS 0.001A – 400.0A
400.1 – 1000A2.5% ± 8 dgts
2.8% ± 8 dgtsDC Current 0.001A – 400.0A
400.1 – 1000A2.5% ± 8 dgts
2.8% ± 8 dgtsAC Voltage True RMS 0.001V – 1000V 1.5% ± 5 dgts DC Voltage 0.1mV – 1000V 1.5% ± 5 dgts LoZ 6.000V
60.00
300.0V3.0% ± 40 dgts Resistance 0.1? – 60M? 1.5% ± 2 dgts (typical) Capacitance 0.01nF – 100mF 3% ± 5 dtgs (typical) Frequency 9.999Hz – 99.9900kHz 1.2% ± 5 dgts Duty Cycle 10% – 90% 1.2% ± 2 dgts Temperature -20°C – 1000°C
-4°F – 1832°F±3.0 % of rdg ± 5°C
±3.0 % of rdg ± 9°FDiode Test 0.3mA into 3.2V DC N/A Power supply 3 x AAA V batteries Included Dimensions 250 x 78 x 40 mm Weight 350g
