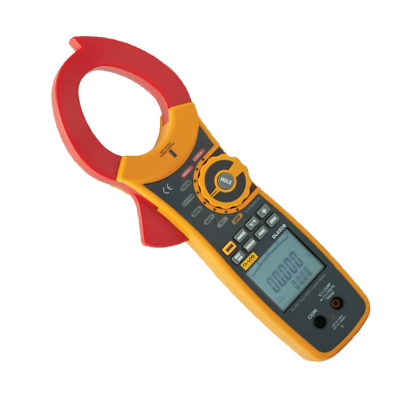

DL6508 Clamp Meter
£395.00
The DL6508 1500A TRMS AC/DC Clamp Meter which provides much safer measurements with a double moulded plastic housing design. True RMS AC/DC voltage and current measurements, 40,000 counts and 0.1% basic DC accuracy within the reach of more customers. The Large backlit LCD display with digital bargraph, ensures that readings are easy to read under all circumstances.
Description
DL6508 1500A AC/DC Clamp Meter
1500A AC/DC True RMS Clamp Meter with Inrush Current Function
The DL6508 1500A TRMS AC/DC Clamp Meter which provides much safer measurements with a double moulded plastic housing design. True RMS AC/DC voltage and current measurements, 40,000 counts and 0.1% basic DC accuracy within the reach of more customers. The Large backlit LCD display with digital bargraph, ensures that readings are easy to read under all circumstances.
Measuring starting current for motors, lighting, etc. is easy with Inrush current function.
All inputs are protected by EN 610101-1 CATIV 600V/CATIII 1000V
Download the DL6508 – 1500 AC/DC Clamp Meter Manual
Download the DL6508 – 1500 AC/DC Clamp Meter Specsheet
“Replacement unit coming soon” (DL6415)
Clamp Meter Features:
- Power Measurement to 900.0kW
- TRMS AC & DC Current to 1500A
- 1000V DC, TRMS 750V AC
- Min, Max, Peak & Hold function
- Inrush Current to 1500A
- Frequency to 40.000Hz
- Capacitance to 40.00mF
- Resistance to 40.000M?
- Temperature via K-type
- Jaw opening 55mm
- 1500A AC/DC Current
- Lead Set
- Auto Power Off
Features: Supplies with Type 4 T-Connectors for power measurement
