SL200 – Solar PV Test Kit
£289.00

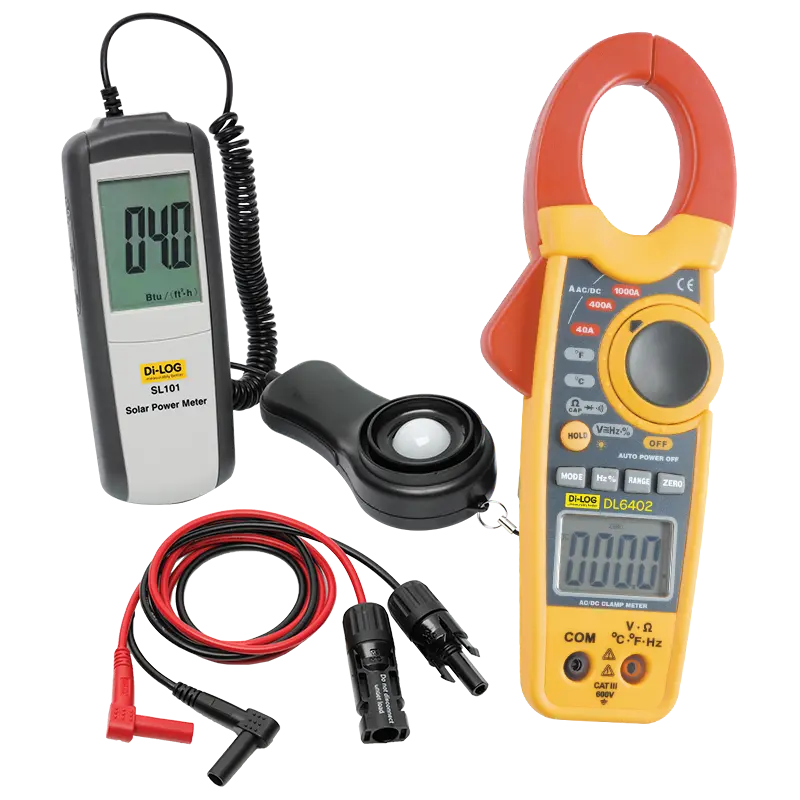

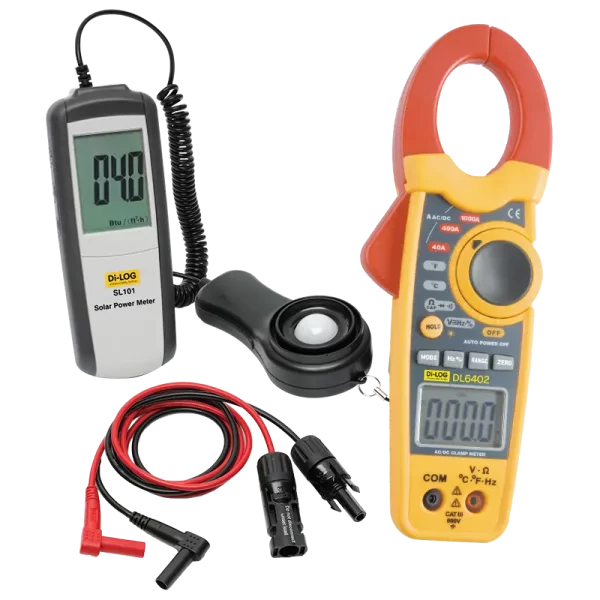

The SL200 Solar PV test kit is a cost-effective option for those looking to install Solar PV systems. It includes the SL101 Solar Irradiance Meter and the DL6402 AC/DC Current Clamp meter, all packaged in a soft, compact carry case.
The SL101 is a professional Solar Irradiance Meter designed to assist in solar panel installations. With its handheld design, the SL101 allows for safe and accurate measurements, even when working at heights. The SL101 also features a hold facility that enables you to record the Irradiance level safely.
Description
SL200 – Solar PV Test Kit
The SL200 – Solar PV Test Kit comes complete with an SLLSC4 4mm MC4 test lead set for Voltage (VOC) measurement on the DL6402. This low-cost kit is ideal for those looking to install Solar PV systems on a budget without compromising on quality or accuracy.
Download the SL101 PV Tester Manual here
Download the SL101 – Solar PV Meter Specifications Sheet here
SL101 – Features:
Solar Irradiance measurement to 1999 W/m2 or 634BTU/ft2*h
Auto Hold
Carry Case
DL6402 – Features:
Audible Continuity
SLLSC4 – 4mm MC4 Red/Black lead set for VOC measurement
Temperature thermocouple and K-Type adaptor supplied
Frequency and capacitance
30 mm jaw opening
1000 AC/DC Current reading
Electronic overload protection
A large easy to see back lit display
AC/DC voltage up to 600V
DL6402 – Features:
- Audible Continuity
- SLLSC4 – 4mm MC4 Red/Black lead set for VOC measurement
- Temperature thermocouple and K-Type adaptor supplied
- Frequency and capacitance
- 30 mm jaw opening
- 1000 AC/DC Current reading
- Electronic overload protection
- A large easy to see back lit display
- AC/DC voltage up to 600V
