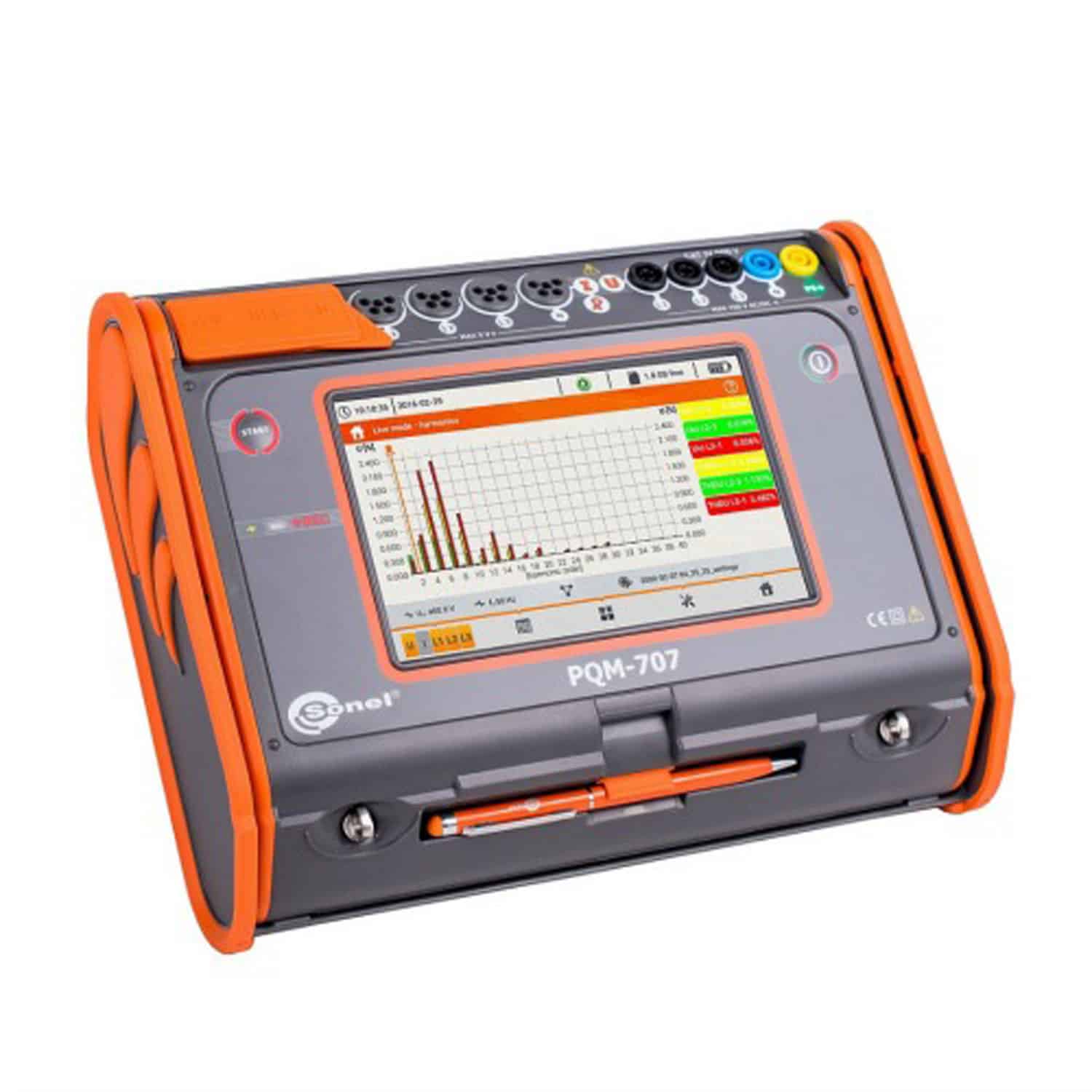

Sonel PQM-707
£3,070.00
The Sonel PQM-707 power quality analyzer is a portable center for power quality analysis. This mobile device enables measuring and analyzing power supply, and it is a versatile meter that operates independently. With the Sonel PQM-707, you can perform measurements and analyses of parameters in both DC and 50/60 Hz power networks.
Description
The device has a memory for storing recorded parameters, and it performs class S measurements in accordance with the requirements of IEC 61000-4-30. As a result, it delivers highly accurate results.
Anti-theft feature – SMS notification in the event of position change (built-in GPS receiver).
- The Sonel PQM-707 Measures according to EN 50160
- Voltage L1, L2, L3, N-PE (five inputs)
- – aaverage, minimum, maximum values, range to 760 V, ability to work with voltage transformers
- Current L1, L2, L3, N (four inputs)
- – average, minimum, maximum values, measurement current with range to 3 kA (depends on used clamp), ability to work with current transformers,
- Crest factor for voltage and current
- Frequency from 40 Hz to 70 Hz
- Active, reactive, distortion, apparent power, including the type of reactive power (capacitive, inductive)
- Power recording
- – Budeanu method
- – IEEE 1459
- Active, reactive, apparent energy
- Power factor, cosφ, tgφ
- Up to 50th harmonics for voltage and current
- Total Harmonic Distortion (THD) for voltage and current
- Short-term (PST) and long-term (PLT) flicker
- Unbalance of voltage and current
- Current and voltage events registration including waveforms and RMS graphs half period
- Inrush current*
- Calculator of energy tariffs*
- The Analyser measures and records according to the IEC 61000-4-30 Class S standard
Download the Sonel PQM-707 Specifications Sheet here
