PQM-710

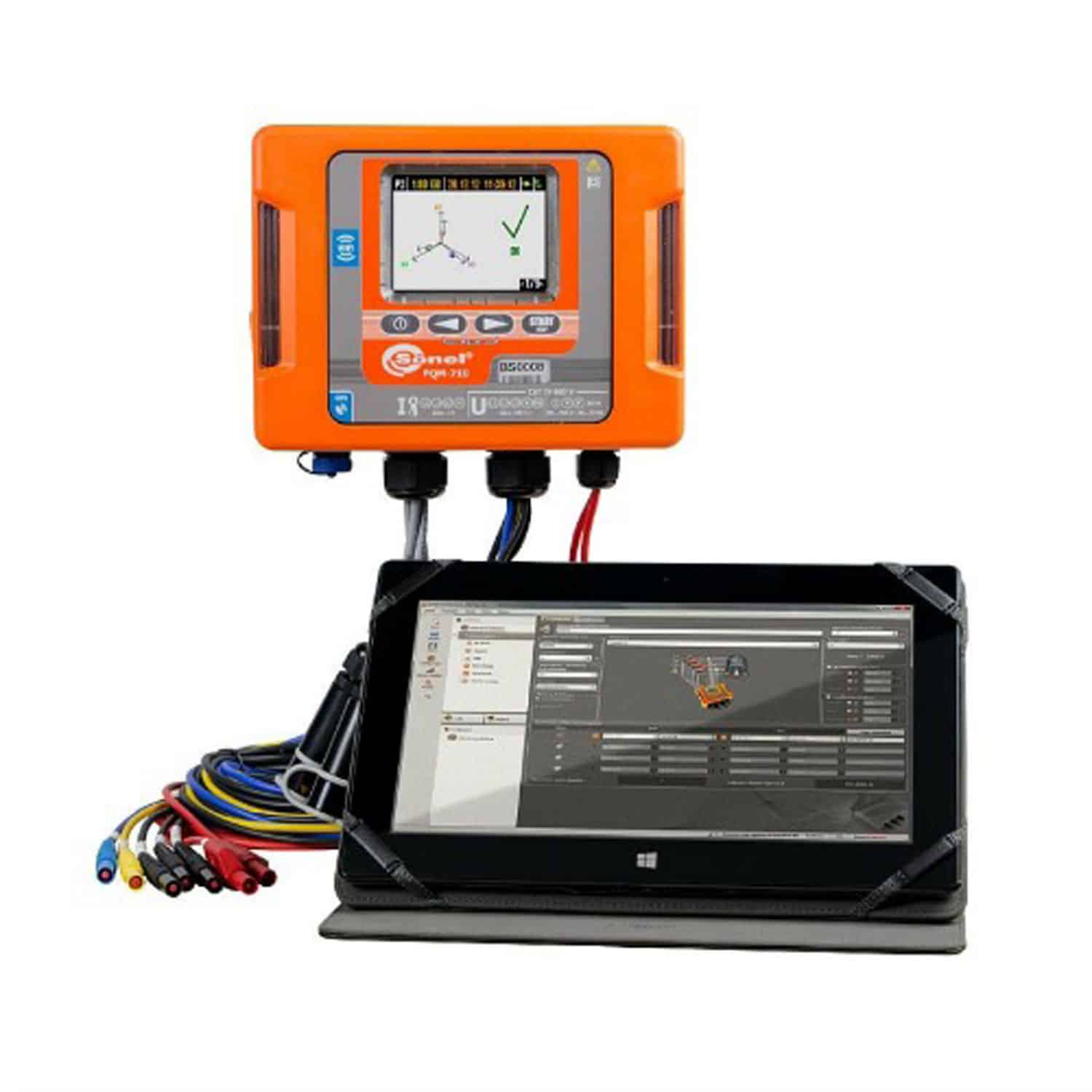

Sonel PQM-710

£6,310.00

The Sonel PQM-710 power quality analyzer is a high-capacity device designed for remote analysis in class A. It is based on advanced technological solutions that enable comprehensive measurement, analysis, and recording of 50/60 Hz power network parameters and power quality. The Sonel PQM-710 can comply with the European standard EN 50160 and the Regulation of the Minister of Economy on detailed conditions for power system operation.

Want a discount? Become a member!
Category:
Description

Anti-theft feature – SMS notification in the event of position change (built-in GPS receiver).

  • The Sonel PQM-710 Measures and Records According to the IEC 61000-4-30 Standard Class A
  • Voltage L1, L2, L3, N PE – average, minimum, maximum and instantaneous, to 760 V, ability to work with voltage transformers
  • Current L1, L2, L3, N (4 inputs) – average, minimum, maximum and instantaneous values, measurement current with range to 3 kA (depends on used clamp), ability to work with current transformers
  • Frequency from 40 Hz to 70 Hz
  • Active, apparent power, the type of reactive power (capacitive, inductive)
  • Active, reactive, apparent energy
  • Power factor
  • Harmonics for voltage and current
  • Total Harmonic Distortion (THD) for voltage and current
  • Short-term (P ) and long-term (P ) flicker
  • Unbalance of voltage and current
  • Current events detection including waveforms recording
  • Current and voltage events recording with waveforms (up to 1s) and RMS 10 ms graphs with 30 s maximum recording time
  • Current and voltage waveforms recording after each averaging period
  • Mains signaling up to 3000 Hz

Download the Sonel PQM-710 Specifications Sheet here

  • Remote control and data transfer through a built-in GSM modem.
  • Real-time clock synchronised to GPS protocol.
  • Remote control of the analyzer via software: Sonel Analysis (Wi-Fi and GSM for Windows) or Sonel Analysis Mobile (Wi-Fi for Android).

Class A remote analysis
