PQM-711-sonel

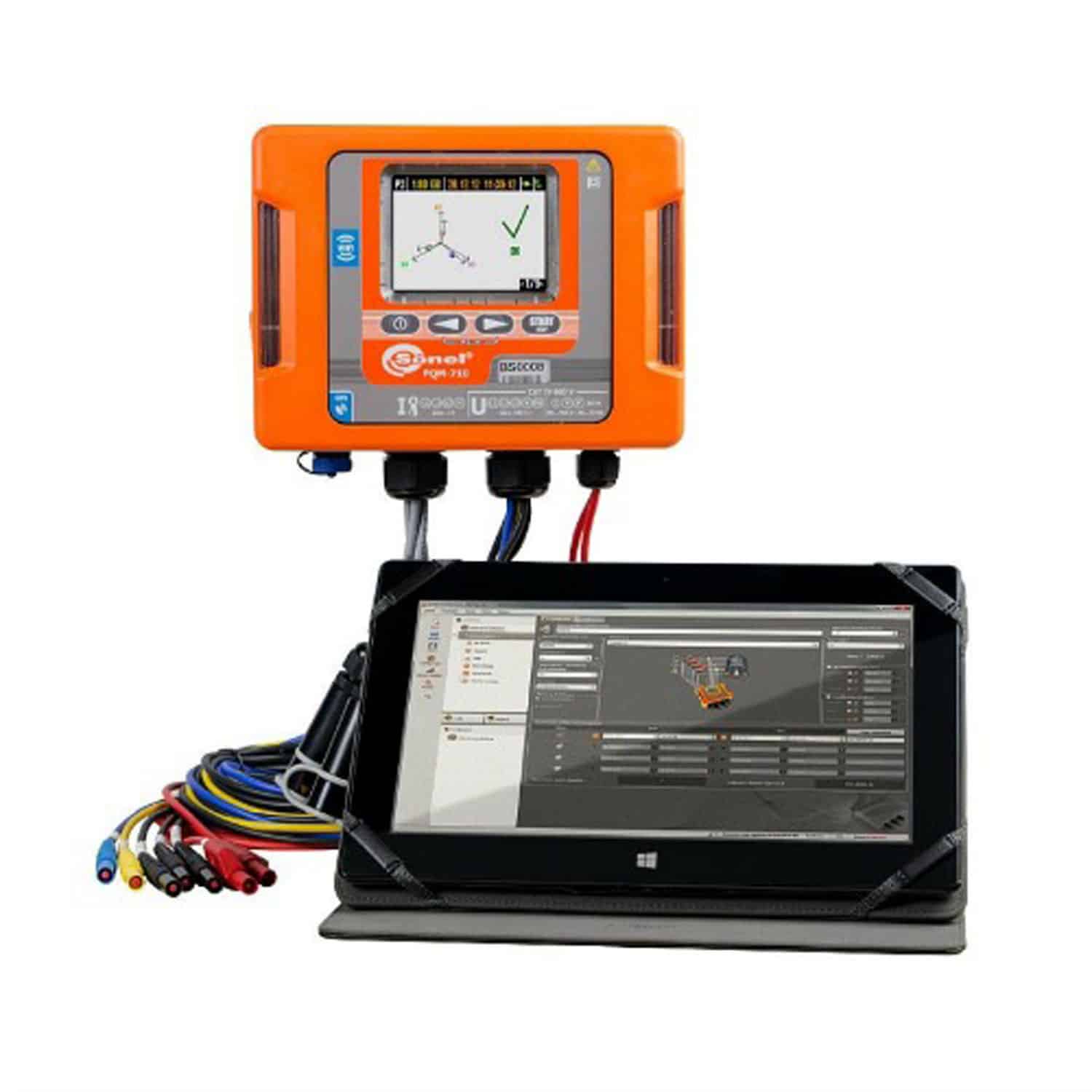

Sonel PQM-711

£8,100.00

The Sonel PQM-711 is a highly versatile power quality analyzer capable of remote analysis in the A class. It is designed to work on all types of networks with a rated voltage range of 110 V to 1000 V, whether connected directly or indirectly through transformers.

Want a discount? Become a member!
Category:
Description

With advanced technology, the Sonel PQM-711 offers comprehensive measurement, analysis, and recording of 50/60 Hz power network parameters and power quality. It is capable of meeting the European standard EN 50160 and the Regulation of the Minister of Economy on detailed conditions for power system operation.

Anti-theft feature – SMS notification in the event of position change (built-in GPS receiver).

  • Measures and Records According to the IEC 61000-4-30 Standard Class A
  • Voltage L1, L2, L3, N PE – average, minimum, maximum and instantaneous , to 760 V, ability to work with voltage transformers
  • Current L1, L2, L3, N (4 inputs) – average, minimum, maximum and instantaneous values, measurement current with range to 3 kA (depends on used clamp), ability to work with current transformers
  • Frequency from 40 Hz to 70 Hz
  • Active, apparent power, the type of reactive power (capacitive, inductive)
  • Active, reactive, apparent energy
  • Power factor
  • Harmonics for voltage and current
  • Total Harmonic Distortion (THD) for voltage and current
  • Short-term (P ) and long-term (P ) flicker
  • Unbalance of voltage and current
  • Current events detection including waveforms recording
  • Current and voltage events recording with waveforms (up to 1s) and RMS 10 ms graphs with 30 s maximum recording time
  • Current and voltage waveforms recording after each averaging period
  • Mains signaling up to 3000 Hz
  • Transients up to ±6000 V with max. sampling frequency 10 MHz. Minimal transient time is 650 ns

Download the Sonel PQM-711 Specifications Sheet here

  • Remote control and data transfer through a built-in GSM modem.
  • Real-time clock synchronised to GPS protocol.
  • Remote control of the analyzer via software: Sonel Analysis (Wi-Fi and GSM for Windows) or Sonel Analysis Mobile (Wi-Fi for Android).

Specially Designed For Work In The Field
